Card PCI-e 1394 800/600

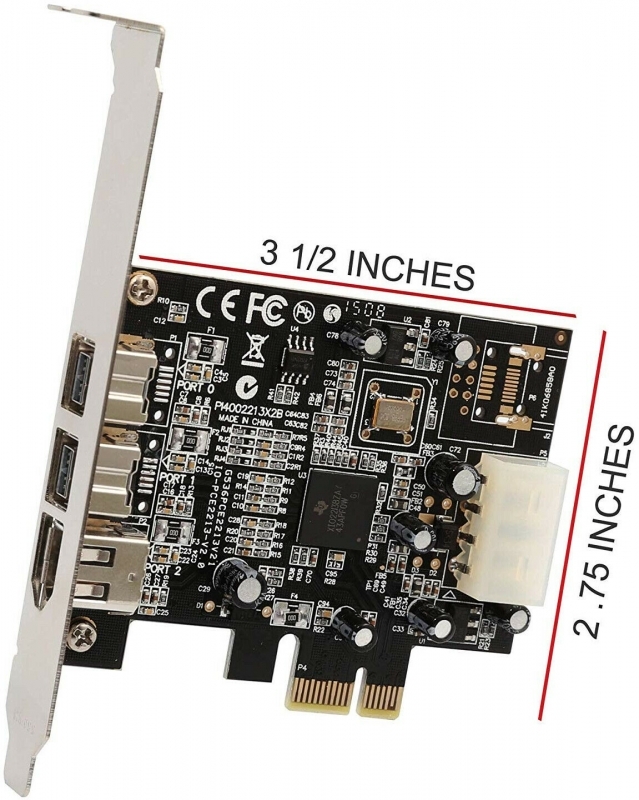

3 ports PCI-Express x1 1394B and 1394A Firewire Card

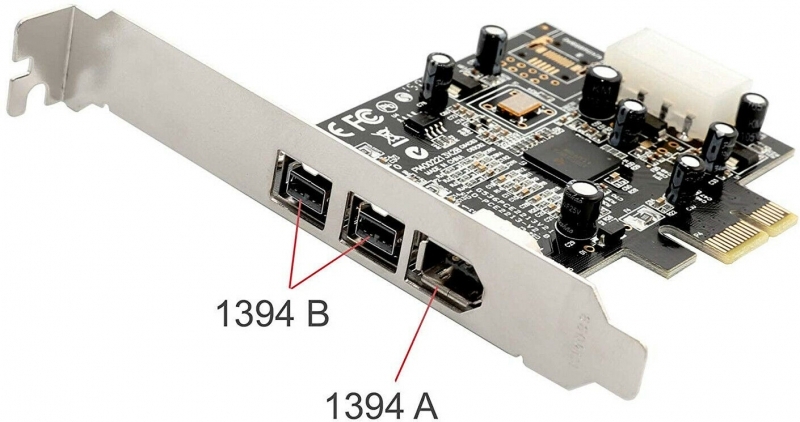

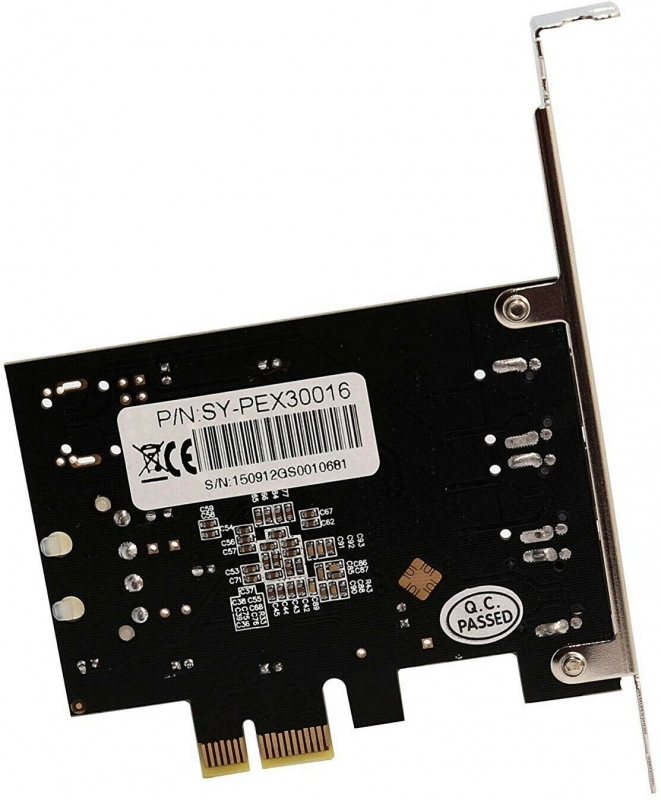

Add FireWire ports to your system for added functionality for Audio/Video programs with SY-PEX30016 2 Port Fire wire 1394B and 1 Port 1394A PCI-e 1.0 x1 Controller Card.

Texas Instruments XIO2213B

The XIO2213B simultaneously supports up to four posted write transactions, four non-posted transactions, and four completion transactions pending in each direction at any time. Each posted write data queue and completion data queue can store up to 8K bytes of data. The non-posted data queues can store up to 128 bytes of data.

Simultaneously supports up to four posted write transactions, four no posted transactions, and four completion transactions pending in each direction at any time. Each posted write data queue and completion data queue can store up to 8K bytes of data. The no posted data queues can store up to 128 bytes of data. The PCIe interface supports a X1 link operating at full 250 MB it/s packet throughput in each direction simultaneously. Also, the bridge supports the advanced error Reporting capability including ECRC as defined in the PCI Express base specification, revision 1.1. Supplemental firmware or software is required to fully utilize both of these features.
